No Drill Shutters
A simpler approach to DIY shutter installation

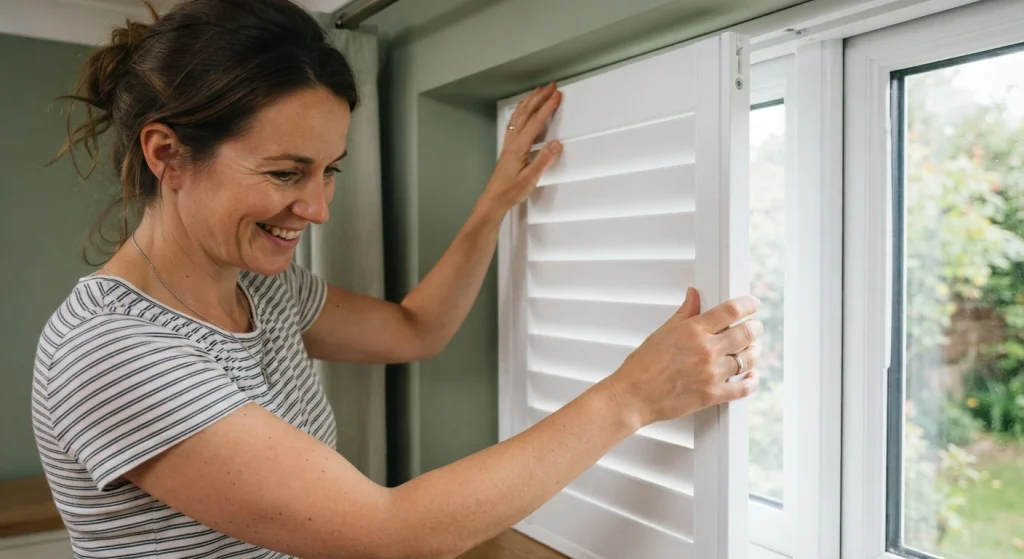

No Drill Shutters are designed to be fitted without screws or drilling into the window frame or surrounding wall. Instead, a purpose built frame clips into compatible window beading, making them a straightforward option for DIY installation and particularly useful where permanent fixings are not wanted.
✓ No drill pros
- No drilling or screws required.
- Designed for straightforward DIY installation.
- Can be removed without leaving screw holes.
- Well suited to many uPVC windows and doors.
- Shutters move with the window or door.
✕ No drill cons
- Not suitable for every window.
- Suited to compatible uPVC or similarly constructed frames.
- Window beading and available clearance need to be suitable.
- Limited choice of materials and constructions than conventional shutters.
- Positioning can affect handles and clearances.
No Drill shutters, fully explained…
No Drill Shutters are a type of DIY shutter designed to be installed without drilling or screwing into the window frame, wall or surrounding reveal. Instead of using conventional fixing brackets, the shutter uses a purpose built frame that clips into a compatible window or door.
How do No Drill Shutters work?
The system is most commonly associated with uPVC windows that have a suitable internal glazing bead or rubber gasket. Small brackets or clips fit behind the bead and hold the frame securely in position. The exact fixing method varies between products, so the manufacturer’s requirements should always be checked before ordering.
One of the main differences between these systems and conventional DIY shutters is where the shutter is fixed. Traditional DIY shutters are normally attached to the window reveal or surrounding surface using screws and brackets. A no drill system instead uses the existing construction of the window to hold the shutter in place.
Where can No Drill Shutters be used?
This makes them particularly useful where drilling is undesirable. They can be considered for rented properties, newer uPVC windows, conservatories or situations where you simply do not want to make holes in the surrounding surface. Removing the shutter can also be relatively straightforward, although the exact removal process will depend on the system used.
Another useful feature is that the shutter can move with the window or door. This can make the system particularly suitable for tilt and turn windows and some French or patio doors, where a conventionally fixed shutter may interfere with the way the opening operates. Clearance around handles and other hardware still needs to be checked before ordering.
Measuring for a No Drill system
Measuring is an important part of the process. Because the frame needs to fit accurately into the existing window construction, the dimensions of the visible glass, glazing bead and available clearance may all be relevant. Some suppliers provide specific measuring instructions for their systems, and the measurements required can differ from those used for conventional shutters.
Materials and options
The choice of materials can also be more limited than with traditional shutters. Many no drill systems use lightweight synthetic or PVC based construction because the shutter and frame need to be suitable for the clip in fixing method. The exact material, finish, louvre sizes and colours will depend on the individual product.
Are No Drill Shutters suitable for every window?
No drill does not necessarily mean that the shutters are suitable for every type of window. Compatibility with the frame, glazing bead, handle position, available depth and opening mechanism all need to be considered. Unusual window shapes may also be excluded from some systems.
Overall, No Drill Shutters provide a specific DIY installation method rather than simply being another shutter style or material. Their main difference is the way they are attached to the window, allowing compatible shutters to be installed without conventional drilling or screw fixings. For the right window, this can make installation simpler, while also allowing the shutters to be removed without the permanent holes associated with traditional fitting.
